GIV200 CNC internal gear profile Form grinding machine

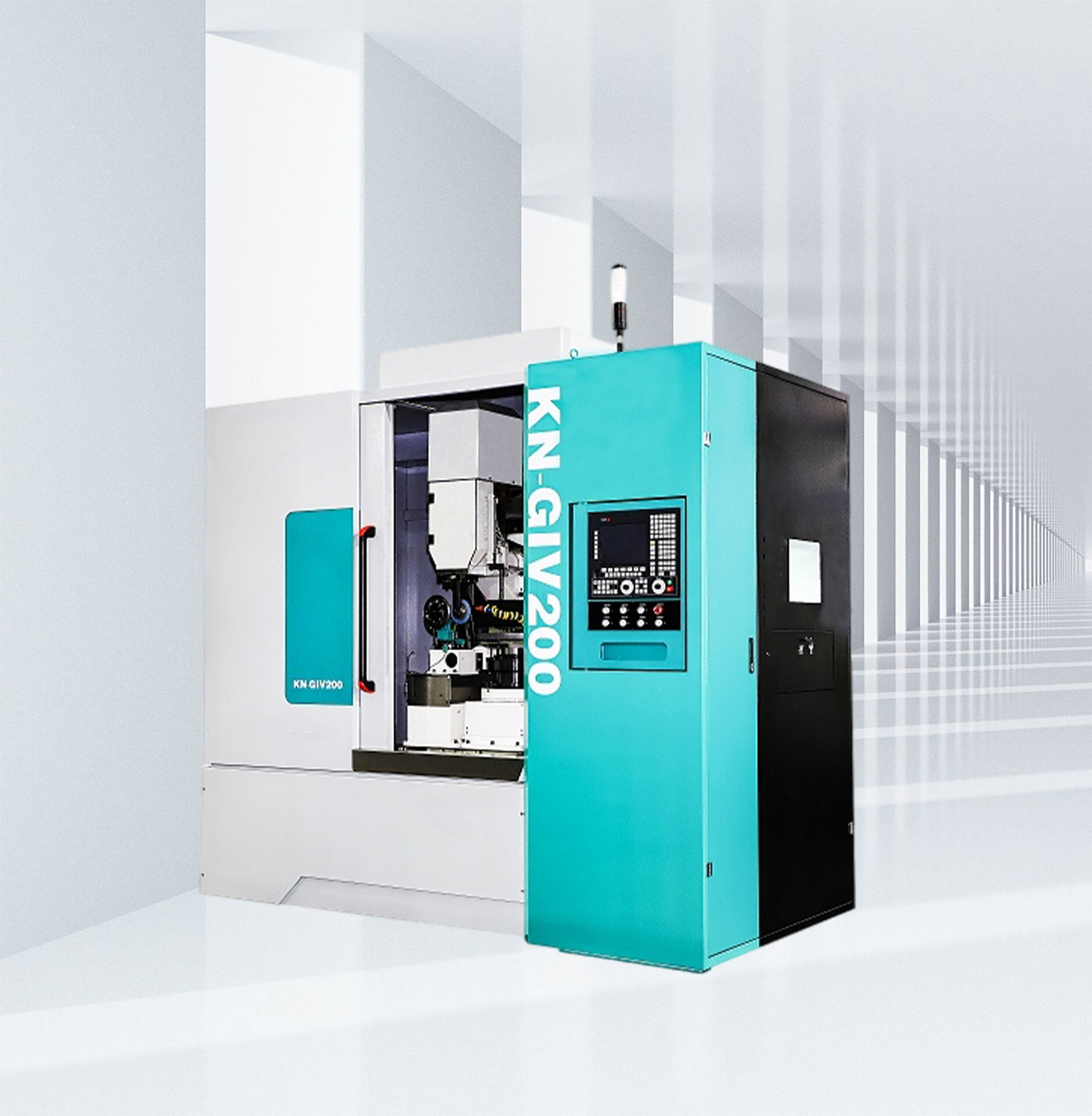

GIV200 CNC Internal Gear Profile Grinder

Specifically designed for high-precision, mass production of internal gears, the GIV200 supports modules 1–8, with a maximum work piece outer diameter of 400mm, minimum inner diameter of 60mm, and maximum face width of 150mm. Its unique machine structure enables efficient grinding of small-diameter internal spur gears, internal keyways, triangular splines, involute, circular-arc, and face gears, making it ideal for manufacturing core automotive and industrial components such as RV reducers, needle bearing housings, and precision ring gears.

Equipped with intelligent graphical programming software, it allows one-click programming for complex internal gear profiles, significantly improving processing efficiency and accuracy. The integrated in-process measuring system enables real-time inspection of tooth profile, lead, and dimensional accuracy during grinding, achieving closed-loop control to ensure consistent part quality.

An optional composite grinding configuration combines internal diameter and face grinding functions in a single machine, enhancing versatility and reducing capital investment. Featuring high rigidity and exceptional stability, the GIV200 empowers manufacturers to achieve automated, high-volume precision internal gear grinding—making it the ideal solution for automotive parts, robot joints, and advanced transmission systems.

Standard configuration

Optional configuration

Q: What is the warranty period?

A: We offer a warranty service for all purchased products ranging from 12 to 24 months, ensuring you are worry-free during the use of our equipment. Choosing us means choosing a long-term and reliable partner.

Q: What is the delivery time?

A: For in-stock items, we guarantee delivery within 1-2 months; for custom-manufactured products, we commit to delivering within 5-6 months. No matter how urgent your needs are, we can respond quickly to ensure your project proceeds on schedule.

Q: Do you provide after-sales service?

A: Yes, we provide comprehensive after-sales services, including but not limited to timely supply of spare parts, online technical support, on-site installation and commissioning, as well as operational training. We strive to offer you the most thoughtful service support to ensure the efficient operation of equipment and assist in the continuous growth of your business.

Q: What additional products or services do you offer?

A: we also provide "turnkey" engineering services, customizing automated production lines according to customer needs to ensure seamless integration with existing production processes. We are committed to offering complete solutions to every customer, helping you achieve maximum production efficiency.
