Multi-functional Universal CNC grinding machine

Multi-Functional High-Precision CNC Grinding Machine: Versatility in One

In modern manufacturing, advancements in precision machining have become a cornerstone of corporate competitiveness. To meet the growing demand for high-efficiency, high-precision processing, we have launched a high-performance CNC grinding machine that integrates multiple grinding functions. Capable of precision grinding for complex shapes such as internal and external cylinders, end faces, tapered surfaces, non-circular profiles, and threads, this machine completes all processes in a single setup, significantly enhancing efficiency and consistency in precision.

I. Multi-Functional Integration for Comprehensive Precision Grinding

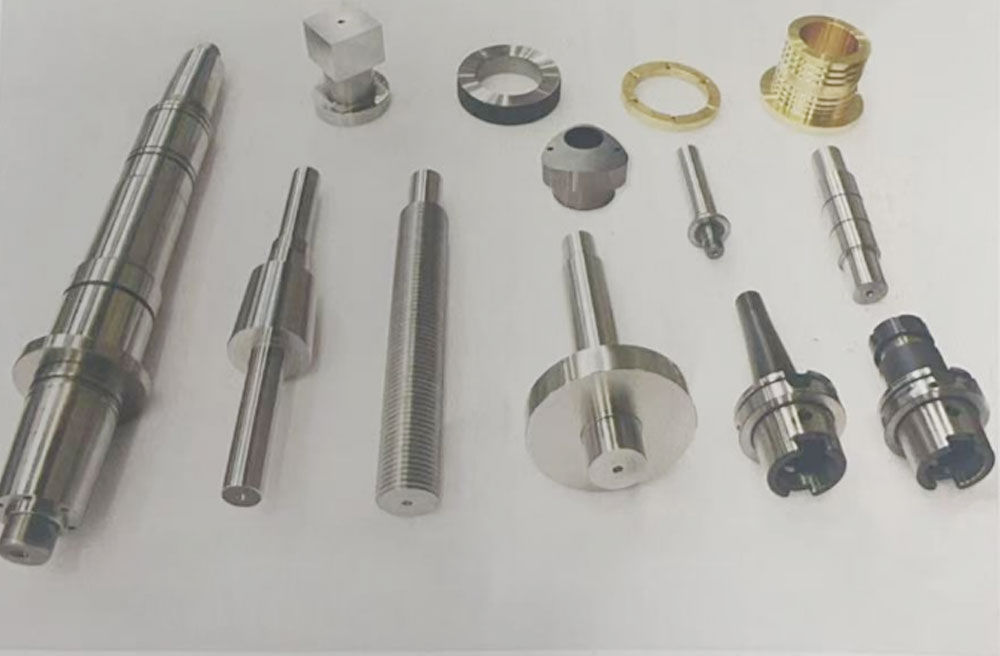

Featuring modular design, this grinder integrates multiple high-precision grinding functions, suitable for shafts, sleeves, discs, and other components across industries such as construction machinery, automotive parts, mold manufacturing, and precision motors. Key capabilities include:

- Internal Grinding

  High-precision machining of internal bores for complex workpieces like bearing housings, hydraulic cylinders, and gearbox casings.

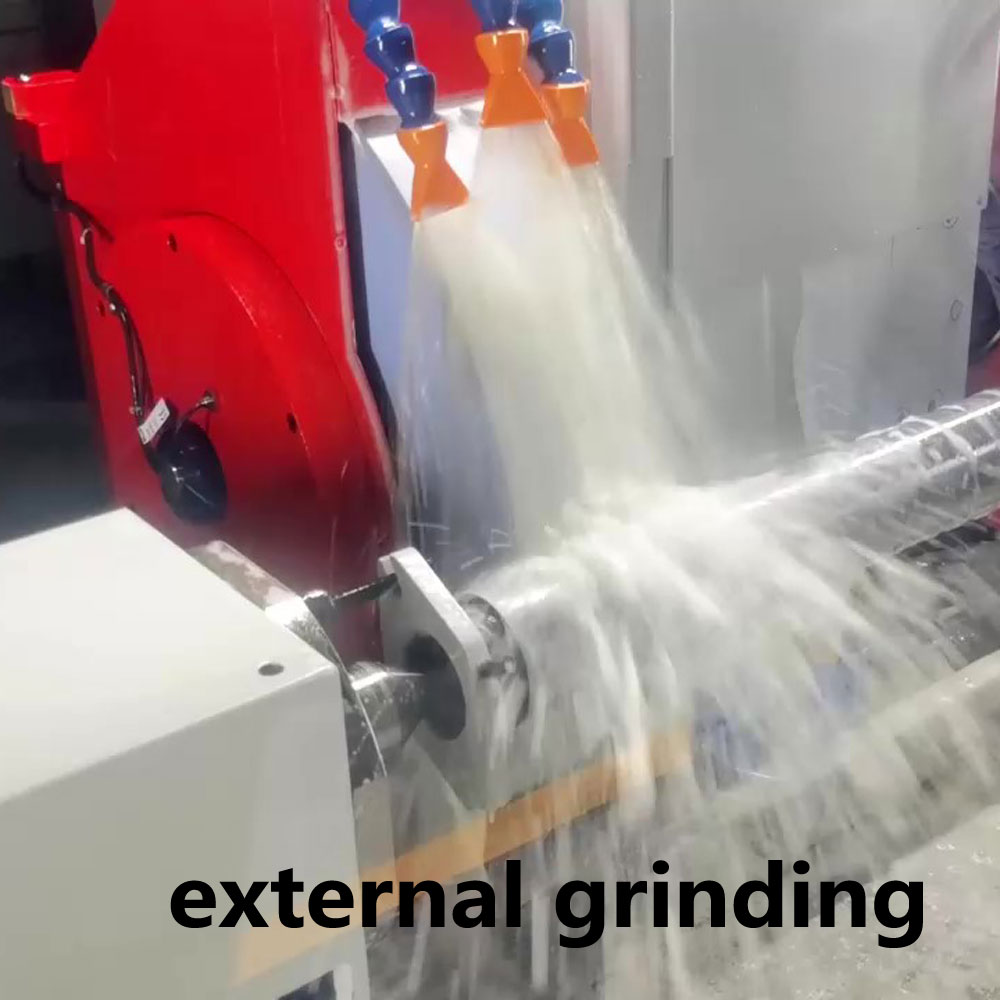

- External Grinding

  Automated grinding of various external profiles, including stepped shafts, smooth shafts, and flanged shafts, ensuring dimensional stability and surface finish.

- Face Grinding

  High-precision control of flatness and perpendicularity for components like flanges and connectors in batch production.

- Taper Grinding

  Accurate machining of conical external or internal surfaces to meet specialized assembly requirements.

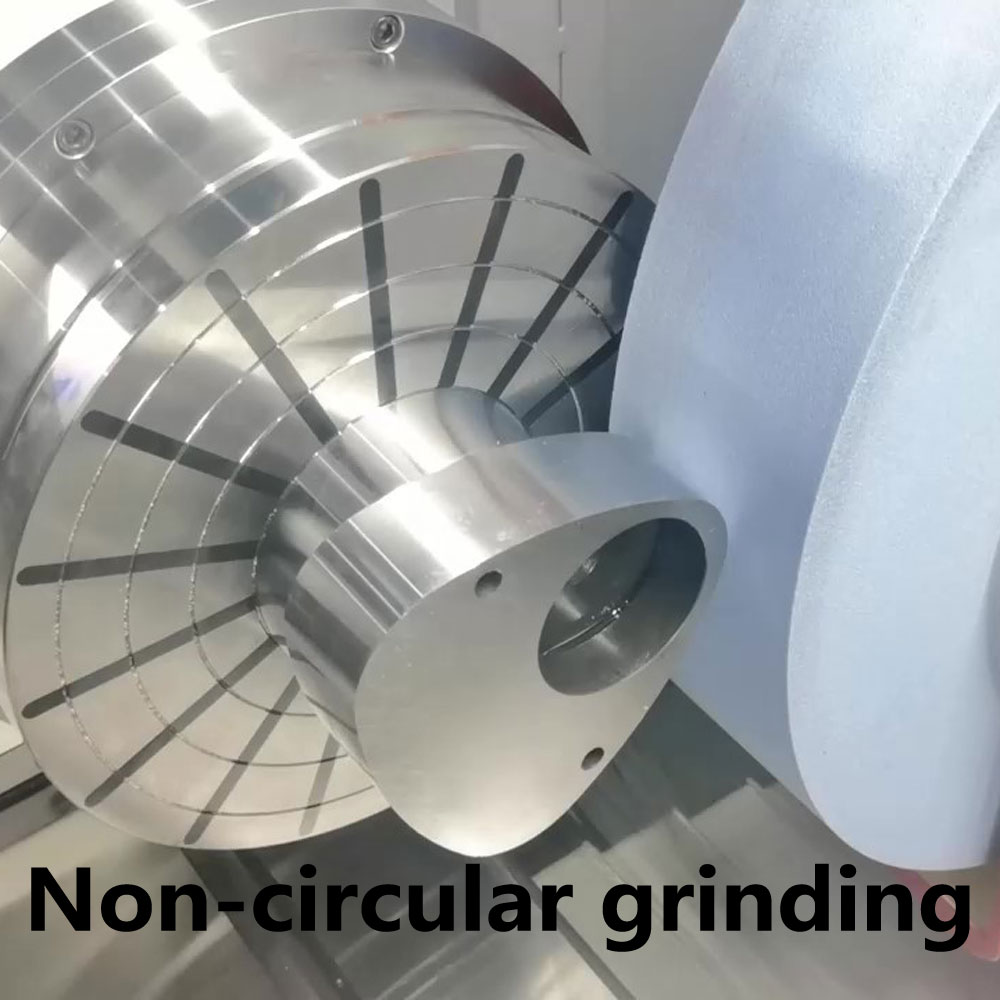

- Non-Circular Grinding

  Processing of non-standard geometries such as ellipses, eccentric cams, and lobes, expanding traditional grinding applications.

- Thread Grinding

  Continuous grinding of high-precision internal and external threads, ideal for hard materials and large-lead threads.

By integrating these six core functions, the machine achieves 'multi-tasking in one,' reducing equipment variety, setup time, and boosting production flexibility and resource utilization.

II. Single Setup, Higher Precision, Greater Efficiency

Traditional multi-step machining often requires repeated setups, leading to time waste and accuracy loss due to repositioning errors. Our CNC grinder, however, enables composite machining in a single setup, completing multi-directional and multi-feature grinding tasks. This not only improves efficiency but also ensures geometric accuracy.

Test data show a grinding roundness of 0.001mm on standard samples, matching the precision of top international brands. To validate performance, we offer free trial grinding services, allowing customers to test actual workpieces and witness quality improvements firsthand.

III. Intelligent Wheel System with Automatic Tool Changer

As the core component, grinding wheels directly impact efficiency and surface quality. Our machine features an advanced wheel management system, enabling rapid switching of wheel types and parameter optimization based on materials and process requirements.

Notably, the optional Automatic Tool Changer (ATC) automates wheel replacement, transitioning from roughing to finishing without manual intervention. This intelligent upgrade enhances continuous operation and reduces operator workload, making it ideal for high-volume, long-run production.

IV. Automation Solutions for Smart Manufacturing

Beyond precision grinding, we provide comprehensive automation solutions, including:

- Robotic loading/unloading systems

- Automated workpiece inspection and sorting

- Real-time dimensional measurement feedback

- Remote CNC monitoring and diagnostics

- MES integration interfaces

These smart components enhance production line efficiency, traceability, and control, supporting digital transformation and Industry 4.0 goals.

V. Wide Industry Applications

With robust capabilities and precision, this grinder serves diverse sectors:

- Construction Machinery: Key components like drive shafts, hydraulic cylinders, and chassis brackets.

- Automotive: High-volume production of engine crankshafts, camshafts, and transmission gear shafts.

- Mold Making: Micron-level machining of guide pins, bushings, and mold cores.

- Precision Motors: Grinding of rotor shafts, stator cores, and bearing seats.

Whether for small-batch customization or mass production, it delivers flexibility and cost efficiency.

Demand in the Middle East

The Middle East's growing manufacturing sector drives demand for high-quality grinding machines, particularly in:

1. Oil & Gas: Precision components for extreme-condition equipment.

2. Aerospace: Complex parts like turbine blades and engine disks.

3. Automotive: Rising vehicle demand and infrastructure development.

4. Metal Processing: Efficient machining for aluminum and other metals.

5. Tech Support: Rapid response, localized service, and spare parts availability.

6. Automation: Integration with Industry 4.0 systems for competitive edge.

VI.  Invest in One Grinder, Reap Multiple Returns

Choosing this multi-functional, high-precision, and intelligent CNC grinding machine is not just an upgrade to current productivity—it's a strategic investment in future manufacturing capabilities. More than a machine, it is a catalyst for advancing smart manufacturing.
